TSFTSH Logo

global fastening solutions

Manufacturing, engineering and integral logistics

Stud assembling systems

studs positioner for pull tightening

The stud’s positioner system, pre-assembles the studs at the right position for being pulled afterwards with pull tightening equipment.

The assemblers can be designed specifically for each particular fitting or can be integrated with regulators to match different size assemblies.

Studs positioner

For pull tightening

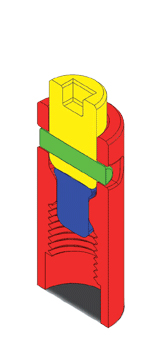

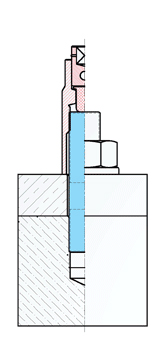

Flange type image
Pre-assembly positioning flange type

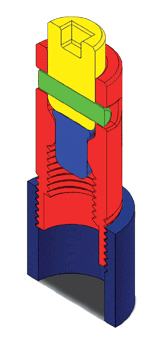

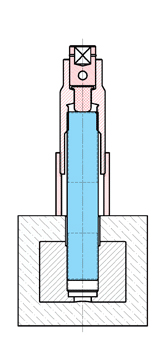

T-Bolt image
Pre-assembly positioning flange type
Flange type image
Pre-assembly positioning flange type
T-Bolt image
Pre-assembly positioning flange type

studs assembler for torque tightening

The stud assembler works as a conventional tightening key which is designed for fast accessing and torque tightening threaded end studs. Our diverse material based systems adequate perfectly to the use on different application scenarios.

Studs assembler

For torque tightening

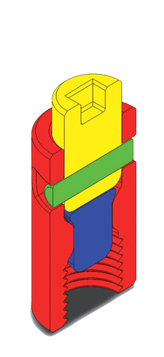

Flange type image
Torque assembly flange type
Flange type image
Torque assembly flange type

disassembler and extractor for pull tightened studs

The heavy series assembler system serves as disassembler to release the clamped studs due to assembly plastifications, moistures, rust remaining’s, etc… and then drive out the stud with the extractor tool.

Disassembler and extractor

For pull tightened studs

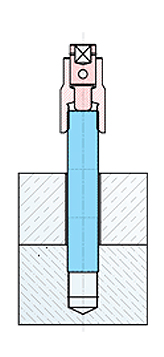

Disassembler image
Stage1: Dissambler initial position
Disassembler image
Stage2: Dissambler releasing stud
Disassembler image

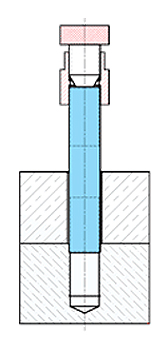

Stage3: Extractor driving out stud

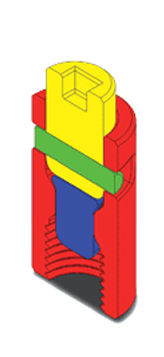

Disassembler image
Dissasembler for stud releasing

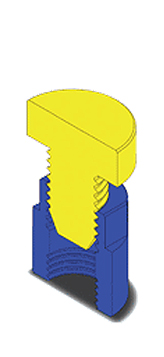

Disassembler image
Extractor for stud drive out

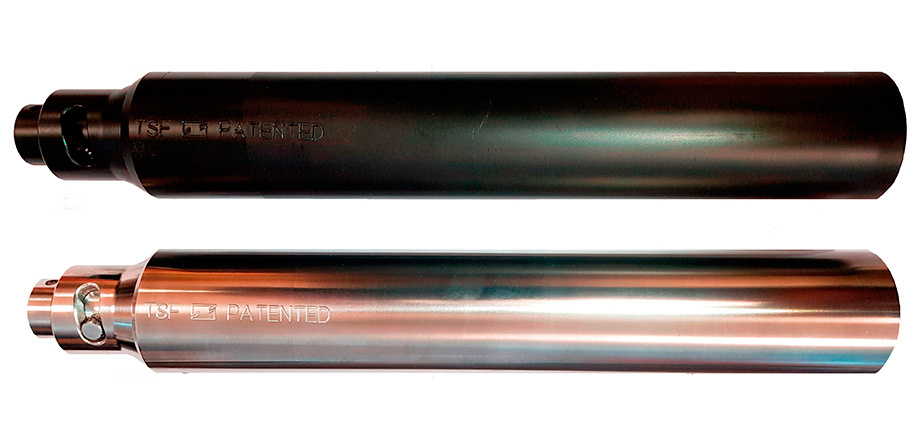

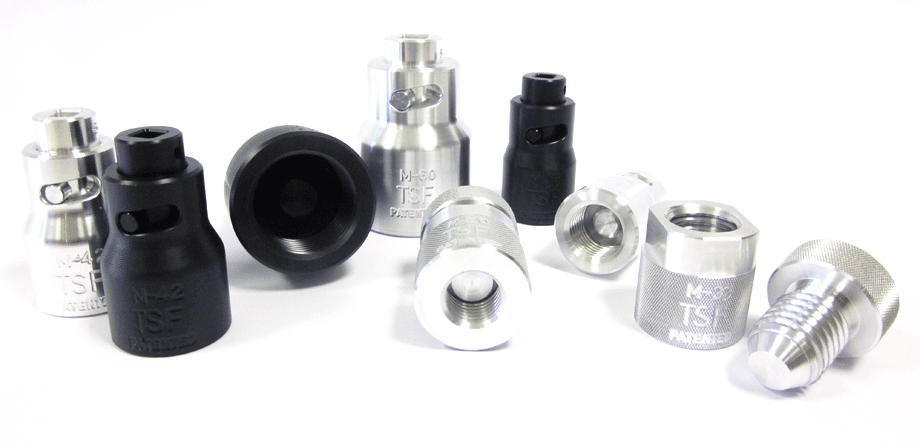

material series

Light Weight Series – Made in Composite for in house assembling.

Medium Series – Made in Duralumin for field assembling.

Heavy Weight Series – Made in Tool Steel for torque tightening assembling.

Use instructions
Material series image
Material series image
Material series image
